Knitted wire mesh
  • Knitted wire mesh
  • Knitted wire mesh
  • Knitted wire mesh
Knitted wire meshKnitted wire meshKnitted wire mesh

Knitted wire mesh

1. Low resistance, repeatable cleaning

2. Acid and alkali resistance, high temperature resistance

3. Safety, firmness and long service life


Share
Description

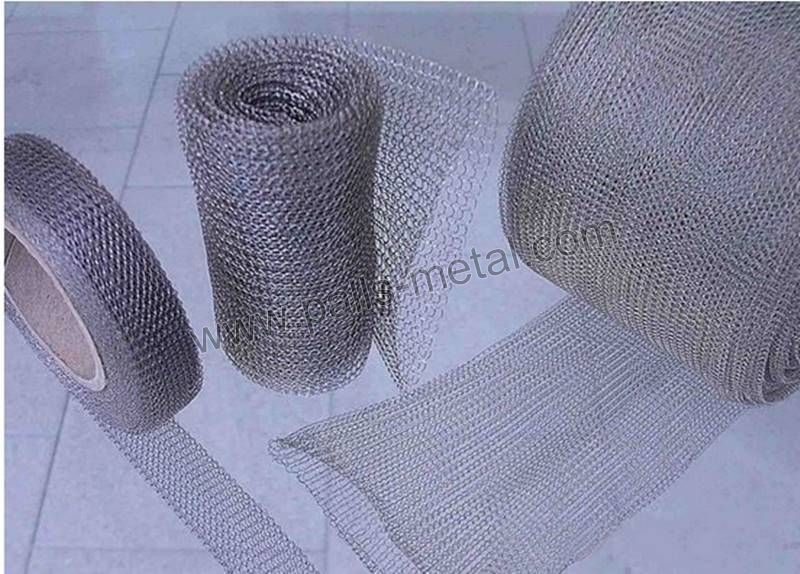

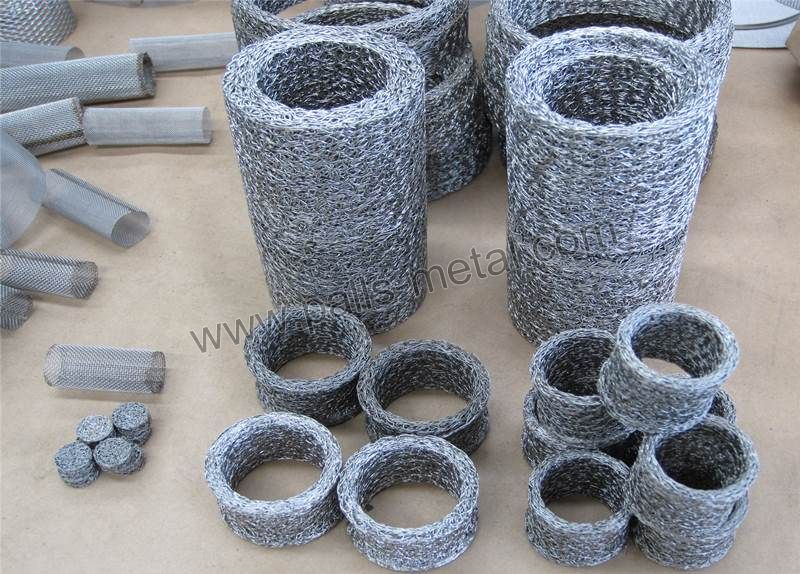

Knitted mesh, also known as vapor-liquid filter mesh, is a special woven wire mesh, used as raw materials for wire mesh demister, which entrain liquid droplet in the gas; used in mechanical equipment manufacturing for oil-gas separation, oil-water separation, gas-liquid separation, shock absorption and noise elimination.


Type

Mesh Specifications

SP

400-100 60-150 105-300 140-400 160-400 200-570

HP

60-100  80-100  80-150  90-150

150-300 200-400  300-600

DP

200-100 30-150 70-400 100-600 170-560

HR

33-30  38-40  20-40  26-40  30-40

30-50  48-50  30-60  30-80  50-120


Material

Mesh Width

PP

100mm, 300mm, 400mm, 500mm, etc.

PTFE

400mm, 500mm

SS304

200mm, 250mm, 400mm, 500mm,1000mm

SS316L

100mm, 300mm, 400mm, 500mm, 600mm

Dup.2205

300mm, 400mm, 500mm

Nickel

300mm

Titanium

300mm, 400mm, 600mm

Monel

300mm, 400mm

Copper

100mm (4 inch), 125mm (5 inch)
